KIP 940

  • Production-speed, wide format printing for monochrome and colour prints at between 325 and 390 square metres per hour
  • LED system with 600 x 2400 dpi resolution output; CMYK dry toner system to produce UV- and water-resistant images
  • Highly versatile media handling: 3 online roll decks plus 1 manual bypass sheet feed
  • Wide range of approved standard and special media for indoor and outdoor usage
  • Range of software applications for technical documents and full-colour graphics production; integration of professional Graphic RIP software and standard cost review tools
  • Advanced finishing options for users with stacking, folding and automatic cutting requirements; upgradable system with professional scanners for copy stations
Entre em Contato
KIP 940 professional printer
KIP 940 professional printer
KIP 940 professional printer
KIP 940 professional printer

Características

Características

KIP 940

Whether in a technical, graphics or office environment looking for high output, precise imaging and bold, expres­sive colour will appreciate the KIP 940 colour and b/w wide-format print system. The wide format device features highly productive print-in-one-pass and is the comprehensive solution for a variety of wide-format printing applications ranging from architectural, engineering, and construction documents to maps, posters, signs and photo enlargements. With the KIP 940, there’s simply no need to compromise on quality, performance or reliability.

Especificações & Downloads

Especificações & Downloads
General
Description High production colour and b&w wide format printing system
Type Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Speed Up to 390 sq. m per hour in b&w – 325 sq. m per hour in colour
Warm up time Less than 6 minutes from power on
Configurations Printer or multifunction system (print/copy/scan)
Toner Four colour (CMYK), dry toner. Printed images are UV lightfast and waterproof
Electrical requirements 220 – 240 V, 50/60 Hz, 20 A
Power consumption Standby: 0.8 kW, Printing: 2.0 kW, Sleep Mode: 10 W
Dimensions 1,376 mm (w) x 790 mm (d) x 1,450 mm (h)
Weight 540 kg
Power consumption 3.0 kWh (printing), 1.0 kWh (standby)
Acoustic noise < 65 db (printing), < 55 db (standby)
Room temperature 10 – 32°C
Printer
Print resolution 600 x 2,400 dpi
Paper capacity 418 sq. m 3 rolls + cut sheet bypass
Output sizes width (roll media) 297 mm – 914 mm
Output sizes length (roll media) 210 mm minimum, 39 m maximum
Paper weight (roll media) Bond: 164 – 150 gsm, Vellum: 80 – 95 gsm, Film: 75 micron, Gloss: 120 gsm
Multi sheet bypass Automatically feeds up to 50 sheets of 75 gsm bond / Maximum sheet size 420 mm x 594 mm / Minimum sheet size 420 mm x 297 mm
Single sheet bypass Up to 120 gsm bond / Maximum sheet size 914 mm x 594 mm / Minimum sheet size 420 mm x 297 mm
Media types Bond, translucent bond, film, double matte, double matte, clear film, weather proof banner film, waterproof bond, film white opaque adhesive back/6 mil, film clear adhesive back, Blue Back, bright fluorescent bond, (yellow, orange, green, blue), fusion banner media
Controller
Type Embedded with Windows 7 CPU: Quad Core
Memory 3 GB
Compatible file formats Raster colour: TIFF, JPG, JPG2000, PNG, BMP, GIF, TGA, RLE/RLC Vector colour/b&w: HPGL, HPGL/2, HP-RTL, Postscript (PS/EPS), Adobe PDF, Autodesk DWF, Multipage PDF & DWF Raster b&w: TIFF Group 3 & 4, CALS Group 4, Grayscale TIFF, CIT/TG4 Vector b&w: Calcomp 906/907
Accessories
  KIP 940 Auto stacker
  KIP 2300 CCD scan system
  KIPFold 2000

  • The support and availability of the listed specifications and functionalities varies depending on operating systems, applications, network protocols as well as network and system configurations.
  • Some of the product illustrations contain optional accessories.
  • Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
  • Konica Minolta does not warrant that all specifications mentioned will be error-free.
  • Microsoft, Windows and the Windows logo are trademarks, or registered trademarks, of Microsoft Corporation in the United States and/or other countries.
  • All other brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.

Get the product brochure now to have all information at hand.

KIP 940 brochure

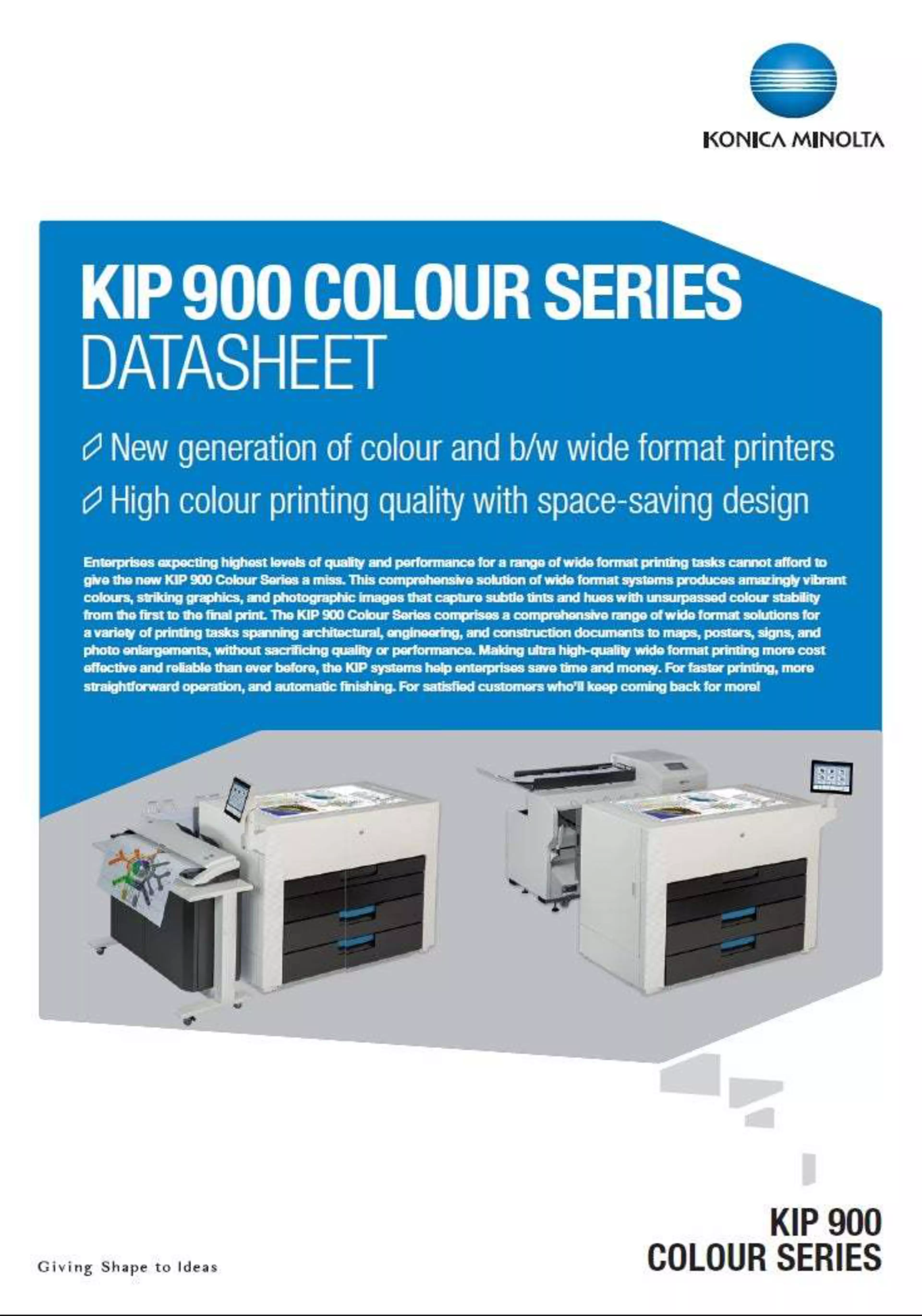

KIP 900 Series datasheet thumbnail
